Flexible Solar Panels



Features:

  • Beautiful appearance, uv resistant, energy-saving and  environmental ly friendly outdoor helper.

  • Semi flexible solar panels do not require the use of glass  backplates and covers.

  • 80% lighter in weight than double-layer glass solar cell modules.

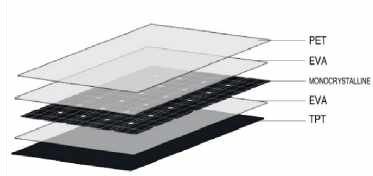

  • Flexible battery cells using pvc backplates and itfe cover plates.

  • It can be bent at a large angle for easy installation.


Standard thickness ：2mm

Specification

Power50W100W150W200W300W360W400W
Power  Tolerance±5%
Operating Voltage18V
LifespanLifespan5 year，1 year warranty
Operating Voltage18±0.1V
Operating Current2.7A±0.5A5.5A±0.5A8.3A±0.5A11A±0.5A16.6A±0.5A20A±0.5A22.2A±0.5A
Short-circuit Current3.14A±0.5A6.04A±0.5A9.14A±0.5A11.74A±0.5A17.14A±0.5A20.98A±0.5A22.98A±0.5A
Open-circuit Voltage21.6V±0.8V
Temperature
Coefficient Voltage		(0.065±0.015)%/℃
Maximum System Voltage1000V
Dimension640*540*2mm1030*520*2mm1130*680*2mm1520*680*2mm1520*1010*2mm1950*980*2mm2020*1010*2mm
Efficiency14.47%18.67%19.52%19.35%19.54%18.84%19.60%
