Power Range: 400~620
High Efficiency

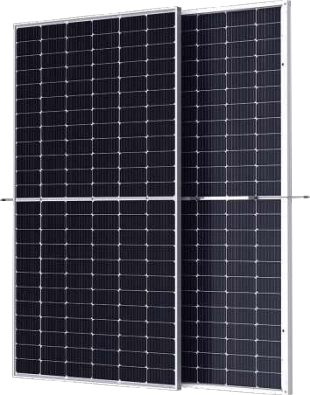

High Efficiency Bifacial N-Type(Topcon) Solar Panels
Key Features
High Efficiency
TOPCon technology improves efficiency, increases power generation,and contributes to lower LCOE.
Lower Heat Spot Risk
Innovative circuit design and"Half Cell" structure decrease the temperature of heat spots and effectively reduce power loss.
Excellent Low-light Performance
Reliable performance in low-light conditions such as in the morning,at dusk or during raining days.
Resilient to Extreme Weather
Carefully selected materials ensure the module still works well under the condition of 2400Pa wind load and 5400Pa snow load.
PID Resistant
High quality solar cell and advanced processing technology contribute to excellent PID resistance performance.
Double-sided electricity generation
Power can be generated on both sides to support additional output gains of up to 25%.The multi-busbar half-cuttechnology can boost energy density to deliver higher output.
Specification
| Maximum Power (Pmax) | Open- circuit Voltage(Voc) | Short- circuit Current(Isc) | Maximum Power Voltage(Vmp) | Maximum Power Current(Imp) | Module Efficiency | Weight | Dimension | Packing information | |
| 420W | 38.02V | 14.17A | 31.46V | 13.36A | 21.51% | 24kg | 1722×1134 ×30mm | 36pcs/pallet 936pcs/40HQ Weight per pallet: 889Kg Size per pallet: 1750* 1125*1270mm | |
| 425W | 38.20V | 14.25A | 31.64V | 13.44A | 21.76% | ||||
| 430W | 38.38V | 14.33A | 31.84V | 13.52A | 22.02% | ||||
| 435W | 38.56V | 14.39A | 32.02V | 13.58A | 22.28% | ||||
| 440W | 38.74V | 14.47A | 32.20V | 13.66A | 22.53% | ||||
| 470W | 42.62V | 14.17A | 34.97V | 13.45A | 21.72% | 28kg | 1909×1134 ×30mm | 36pcs/pallet 864pcs/40HQ Weight per pallet: 1033Kg Size per pallet: 1925* 1125*1270mm | |
| 475W | 42.83V | 14.25A | 35.13V | 13.53A | 21.94% | ||||
| 480W | 43.06V | 14.33A | 35.29V | 13.61A | 22.17% | ||||
| 485W | 43.29V | 14.41A | 35.45V | 13.69A | 22.40% | ||||
| 490W | 43.51V | 14.49A | 35.61V | 13.77A | 22.63% | ||||
| 520W | 48.26V | 13.83A | 39.90V | 13.02A | 21.90% | 30kg | 2094×1134 ×30mm | 36pcs/pallet 792pcs/40HQ Weight per pallet: 1105Kg Size per pallet: 2120* 1125*1270mm | |
| 525W | 48.41V | 13.94A | 40.05V | 13.12A | 22.10% | ||||
| 530W | 48.58V | 14.01A | 40.21V | 13.19A | 22.31% | ||||
| 535W | 48.73V | 14.08A | 40.39V | 13.26A | 22.53% | ||||
| 540W | 48.86V | 14.16A | 40.52V | 13.34A | 22.74% | ||||
| 570W | 51.75V | 14.06A | 43.87V | 13.02A | 22.07% | 31kg | 2278×1134 ×30mm | 36pcs/pallet 720pcs/40HQ Weight per pallet: 1141Kg Size per pallet: 2305* 1125*1270mm | |
| 575W | 51.86V | 14.12A | 44.17V | 13.05A | 22.26% | ||||
| 580W | 51.98V | 14.20A | 44.46V | 13.08A | 22.45% | ||||
| 585W | 52.1V | 14.28A | 44.75V | 13.11A | 22.65% | ||||
| 590W | 52.22V | 14.35A | 45.04V | 13.13A | 22.84% | ||||
| 600W | 48.51V | 12.62A | 40.3V | 14.9A | 22.21% | 33.5kg | 2382×1134 ×30mm | 36pcs/pallet 720pcs/40HQ Weight per pallet: 1141Kg Size per pallet: 2396* 1125*1270mm | |
| 605W | 48.71V | 12.66A | 40.5V | 14.95A 15A | 22.40% | ||||
| 610W | 48.91V | 12.71A | 40.7V | 15.05A | 22.58% | ||||
| 615W | 49.11V | 12.75A | 40.9V | 15.10A | 22.77% | ||||
| 620W | 49.31V | 12.79A | 41.1V | 22.95% | |||||
